Majalisar tace matattara mai aiki da jituwa (100A-300A) Hoton Featured
  • Active masu jituwa tace majalisar (100A-300A)

Active masu jituwa tace majalisar (100A-300A)

Takaitaccen Bayani:

Majalisar tace matattara mai aiki da jituwa kayan aiki ne na ci gaba da ake amfani da shi don ragewa da sarrafa murdiya cikin tsarin wutar lantarki.Waɗannan kabad ɗin suna amfani da fasahar tacewa mai aiki don saka idanu sosai da kuma nazarin abubuwan da suka jitu da wutar lantarki, sannan su ƙirƙira da allurar da za a iya jujjuya igiyoyin ruwa don magance masu jituwa.Kare kayan aiki masu mahimmanci daga lalacewa da yuwuwar lalacewa.Ana iya haɗa waɗannan ɗakunan kabad a cikin tsarin rarraba wutar lantarki tare da nau'ikan ingancin wutar lantarki ɗaya ko fiye.

- Rage daidaituwa na 2nd zuwa 50th

- Diyya ta ainihi

- Modular zane

- Kare kayan aiki daga yin zafi ko gazawa

- Inganta ingantaccen aiki na kayan aiki



Ƙididdigar diyya na yanzu:100A ~ 300A
Wutar lantarki mara kyau:AC400V(-40% ~+15%)
Hanyar sadarwa:3 lokaci 3 waya/3 lokaci 4 waya
Girman majalisar ministoci:800 x 1000 x 1600mm, zai iya ɗaukar 3 kayayyaki.

Cikakken Bayani

FAQ

Tags samfurin

资源 12@2x

Cin duri

Harmonic tushen: thyristor, inverter

Harmonic kayan aiki: gudun fan, kowane irin famfo

资源 9@2x

Masana'antar cibiyar bayanai

Tushen masu jituwa: UPS, mai gyara

Harmonic kayan aiki: UPS, kwandishan, lif, LED fitilu

资源 3@2x

Kera motoci

Tushen masu jituwa: inverter, rectifier

Kayan aiki masu jituwa: injin walda, tsarin isarwa

资源 11@2x

Samar da wutar lantarki

Tushen masu jituwa: mai gyara, inverter

Kayan aiki masu jituwa: kowane nau'in famfo

资源 8@2x

Maganin najasa

Tushen masu jituwa: inverter, rectifier

Kayan aiki masu jituwa: fan, famfo

资源 5@2x

Tulin cajin mota

Tushen masu jituwa: mai gyara

Na'urar jituwa: caja

资源 4@2x

Semiconductor

Tushen masu jituwa: thyristor, makera crystal guda ɗaya

Kayan aiki masu jituwa: quartz crucible, thyristor

资源 7@2x

Asibiti

Tushen masu jituwa: mai gyara, UPS, inverter

Kayan aiki masu jituwa: madaidaicin kayan aiki, Fitilar LED, lif, UPS

资源 1@2x

Masana'antar takarda

Tushen masu jituwa: fitilar halogen, inverter

Harmonic kayan aiki: pulper, takarda yankan, overpress, Arc fitila

资源 10@2x

Karfe da karafa

Tushen masu jituwa: mai gyara, inverter, thyristor

Kayan aiki masu jituwa: tanderun fashewa, tanderun mitar matsakaici

资源 6@2x

Dandalin hakowa

Tushen masu jituwa: mai gyara, inverter

Kayan aiki masu jituwa: Saitin janareta na AC, famfo

资源 2@2x

Gine-ginen zamani

Tushen masu jituwa: mai gyara, inverter

Kayan aiki masu jituwa: sauya wutar lantarki, kwandishan, lif, LED

Filin Aikace-aikacen Na Musamman

Sana'aTransformer iya aiki Teburin tambaya na zaɓin iyawar diyya ta tsakiya
Jirgin karkashin kasa, tunnels, jiragen kasa masu sauri, filayen jirgin sama Sadarwa, gine-gine na kasuwanci, aikin ƙarfe, banki Masana'antar likitanci Kera motoci, kera jiragen ruwa Chemical, man fetur Masana'antar ƙarfe
Bambancin mitar halin yanzu 15% 20% 25% 30% 35% 40%
200 kVA 50A 50A 100A 100A 100A 100A
250 kVA 50A 100A 100A 100A 150A 150A
315 kVA 100A 100A 150A 150A 150A 200A
400 kVA 100A 150A 150A 200A 200A 250A
500 kVA 100A 150A 200A 200A 250A 300A
630 kVA 150A 200A 250A 300A 350A 400A
800 kVA 200A 250A 300A 350A 450A 500A
1000 kVA 200A 300A 400A 450A 550A 600A
1250 kVA 300A 350A 450A 550A 650A 750A
1600 kVA 350A 500A 600A 700A 850A 950A
2000 kVA 450A 600A 750A 900A 1050A 1200A
2500 kVA 550A 750A 900A 1150A 1300A 1500A
* Lura: Ana samun ƙarfin AHF a cikin tebur ɗin da ke sama a ma'aunin ɗaukar nauyi na 80 bisa ɗari.A cikin ainihin ayyukan, ana samun ƙarfin AHF daidai gwargwado ta hanyar kwatanta ƙimar ma'aunin nauyi tare da nauyin nauyin 80% a cikin wannan tebur.
* Wannan Teburin don zaɓin zaɓi ne kawai

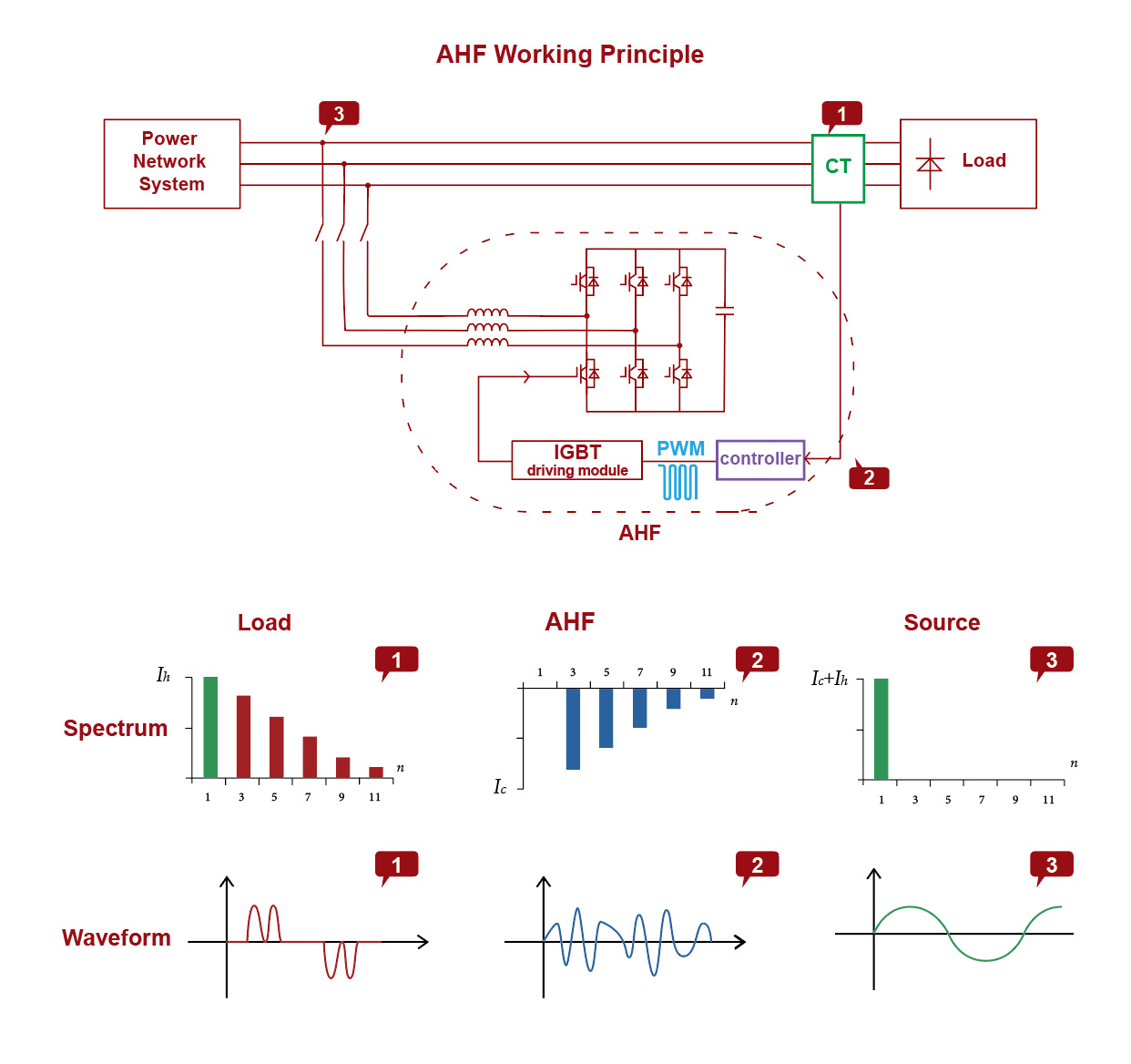

Ƙa'idar Aiki

CT na waje yana gano nauyin halin yanzu, DSP kamar yadda CPU ke da ingantaccen lissafin sarrafa dabaru, zai iya bin umarnin halin yanzu cikin sauri, rarraba kayan yanzu zuwa ƙarfin aiki da ƙarfin amsawa ta amfani da FFT mai hankali, kuma yana ƙididdige abun ciki masu jituwa cikin sauri da daidai.Sannan yana aika siginar PWM zuwa allon direba na IGBT na ciki don sarrafa IGBT a kunna da kashewa a mitar 20KHZ.A ƙarshe yana haifar da kishiyar ramuwa na halin yanzu akan shigar da inverter, a lokaci guda CT kuma yana gano abubuwan fitarwa na halin yanzu da mummunan martani yana zuwa DSP.Sa'an nan DSP ya ci gaba da sarrafa ma'ana na gaba don cimma ingantaccen tsari da kwanciyar hankali.

AHF2
电网到负载，英文2

Ƙididdiga na Fasaha

TYPE 220V Series 400V Series 500V Series 690V Series
Ƙididdigar diyya na halin yanzu 23 A 15A, 25A, 50A
75A, 100A, 150A		 100A 100A
Wutar lantarki mara kyau AC220V
(-20% ~ +15%)		 AC400V
(-40% ~ +15%)		 AC500V
(-20% ~ +15%)		 Saukewa: AC690V
(-20% ~ +15%)
Ƙididdigar mita 50/60Hz± 5%
Cibiyar sadarwa Juzu'i ɗaya 3 lokaci 3 waya/3 lokaci 4 waya
Lokacin amsawa <40ms
Harmonics tace 2nd zuwa 50th Harmonics,The yawan diyya za a iya zaba, da kuma kewayon guda diyya za a iya gyara.
Adadin ramuwa masu jituwa > 92%
Iyawar tace tsaka tsaki / Ƙarfin tacewa na layin tsaka tsaki na waya na 3 lokaci 4 shine sau 3 na na tsawon lokaci
Ingantacciyar injin > 97%
Mitar sauyawa 32kHz 16 kHz 12.8 kHz 12.8 kHz
Aiki Ma'amala da masu jituwa
Lambobi a layi daya Babu iyakancewa. Za a iya sanye take da tsarin saka idanu guda ɗaya tare da na'urorin wutar lantarki har zuwa 8
Hanyoyin sadarwa Sadarwar sadarwa ta RS485 mai tashoshi biyu (tallafi GPRS/WIFI sadarwar mara waya)
Alfitude ba tare da derating ba <2000m
Zazzabi -20 ~ + 50 ℃
Danshi <90% RH,Matsakaicin matsakaicin matsakaicin kowane wata shine 25°C ba tare da tari akan saman ba
Matsayin gurɓatawa Kasa matakin III
Ayyukan kariya Overload kariya, hardware kan-yanzu kariya, over-voltage kariya, ikon kasawar kariya, kan-zazzabi kariya, mitar anomaly kariya, short kewaye kariya, da dai sauransu
Surutu <50dB <60dB <65dB
kafawa Rack/An saka bango
A cikin hanyar layi Shigar baya (nau'in tara), shigarwar saman (nau'in bangon bango)
Matsayin kariya IP20





Sunan samfur

AHF品牌

Bayyanar samfur

29e77221f7226d343f3da317821a2e4
Samfura Iyawa Tsarin Wutar Lantarki Girman (w3*D3*H3)(mm) Yanayin sanyaya
YIY AHF-100-0.4-4L-C 100A 400V (-40% ~ +15%) 800*1000*2200(Majalisa 1)
800*1000*1600(Majalisa 2)
zabin		 Sanyaya iska ta tilas
YIY AHF-150-0.4-4L-C 150A 400V (-40% ~ +15%) 800*1000*2200(Majalisa 1)
800*1000*1600(Majalisa 2)
zabin		 Sanyaya iska ta tilas
YIY AHF-200-0.4-4L-C 200A 400V (-40% ~ +15%) 800*1000*2200(Majalisa 1)
800*1000*1600(Majalisa 2)
zabin		 Sanyaya iska ta tilas
YIY AHF-250-0.4-4L-C 250A 400V (-40% ~ +15%) 800*1000*2200(Majalisa 1)
800*1000*1600( majalisar ministoci 2)
zabin		 Sanyaya iska ta tilas
YIY AHF-300-0.4-4L-C 300A 400V (-40% ~ +15%) 800*1000*2200(Majalisa 1)
800*1000*1600(Majalisa 2)
na zaɓi		 Sanyaya iska ta tilas
YIY AHF-400-0.4-4L-C 400A 400V (-40% ~ +15%) 800*1000*2200(Majalisa 1)
800*1000*1600( majalisar ministoci 2)
na zaɓi		 Sanyaya iska ta tilas
YIY AHF-300-0.5-4L-C 300A 500V (-20% ~ + 15%) 800*1000*2200(Majalisa 1) Sanyaya iska ta tilas
YIY AHF-300-0.69-4L-C 300A 690V(-20% ~+15%) 800*1000*2200(Majalisa 1) Sanyaya iska ta tilas
* Majalisar ministoci 1 na iya ɗaukar kayayyaki 5.Majalisar ministoci 2 na iya ɗaukar kayayyaki 3.
*Idan kuna buƙatar kowane girman, da fatan za a tuntuɓe mu don keɓancewa.
